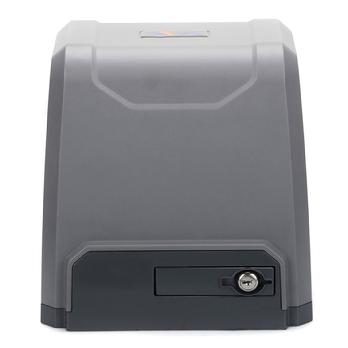

SL1500
SL1500

SL1500

DETAILED PRODUCT DESCRIPTION

The SL61500 gate opener designed for Heavy Duty Commercial use, weight up to 1500 Kg and operating distance up to 8 meters, Chain driven.

Compact structure, cost-effective.

Built in control board

Keypad / single button interface.

Alarm lamp, Photo beam & safety beam interface.

User can select auto-close function.

Optional for spring limit switch and magnetic limit switch

Manual key release design for emergency purposes.

Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing. (Smart version)

Installation accessories

Main technical parameters

Type

SL600ACL

Power supply

110V, 60Hz

Remote control range

≥30m

Max. gate weight

1500Kg

Chain length

6M

Motor power

430W

Limit switch

Spring limit switch or magnetic limit switch

Remote control mode

Single button

Frequency

433.92MHz

Output shaft height

46mm

Noise

≤58dB

Extra remote control

25 (2 included)

Environmental temperature

-20°C~+50°C

Gate moving speed

11m/min

13m/min

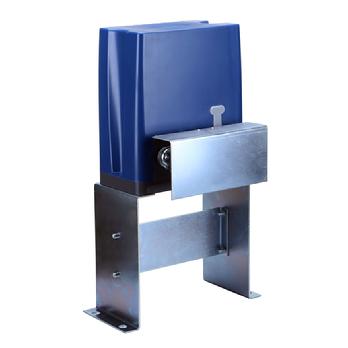

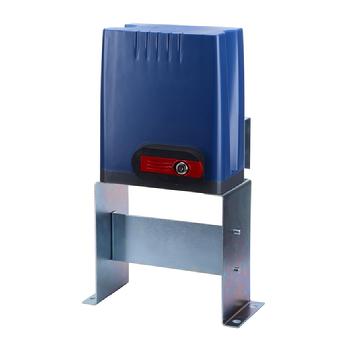

DC800

DETAILED PRODUCT DESCRIPTION

The DC800 gate opener designed for residential use, weight up to 800 Kg and operating distance up to 8 meters, Chain driven.

Compact structure, cost-effective.

Built in control board

Keypad / single button interface.

Alarm lamp, Photo beam & safety beam interface.

User can select auto-close function.

Optional for spring limit switch and magnetic limit switch

Manual key release design for emergency purposes.

Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing. (Smart version)

Installation accessories

Main technical parameters



Type

DKC800ACL

Power supply

220V/50Hz; 110V/60Hz

Remote control range

                                                      ≥30m

Max. gate weight

800Kg

Chain length

6M

Motor power

300W

Output torque

18N·m

Work duty

S2, 15min

Limit switch

Spring limit switch or magnetic limit switch

Remote control mode

Single button

Frequency

433.92MHz

Output shaft height

46mm

Noise

≤58dB

Extra remote control

25 (2 included)

Environmental temperature

-20°C~+50°C

Gate moving speed

11m/min

13m/min

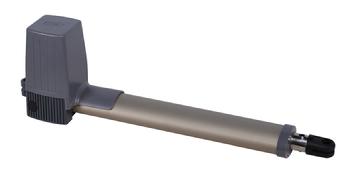

P300

The P300 gate opener designed for residential courtyard swing gate use, gate leaf weight up to 300 Kg and width up to 2.5 meters.

DC motor, compact structure, smooth operation and low noise.

Optional for Stroke length 29 cm and 49 cm.

Separately control box

Keypad / single button interface.

Alarm lamp, Photo beam & safety beam interface.

User can select auto-close function.

Installing the mechanical stops inside the opener to eliminate ground stops, possibility to use adjustable fixing limit block.

Manual key release design for emergency purposes.

Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing.

Main technical parameters

Unit Model

P300

Power supply

AC220V/110V

Motor power

DC24V 140W

Driving method

Screw driven piston type

Max stroke

29 / 49 cm

Max speed

1.5cm/sec

Operating cycle

20 second per 90 (approx.)

Max. gate weight

300 Kg/Leaf

Max. single-leaf length

2.5 M

Gearbox

Worm gear

Work duty

S2 30min

Remote control range

≥30 meters

Frequency

433.92mHz

Extra remote control

25 (2 included)

Environmental temperature:

-20 to +70C

Weight

17 Kg
